Why Do PVC Pipes Bulge When Using a Water Pump? Causes and Prevention Guide

PVC pipes are widely used in residential and agricultural water systems due to their affordability and ease of installation. However, a common issue many users encounter is PVC pipe bulging, especially near the water pump.

This problem can eventually lead to pipe rupture, leakage, and costly system damage if not addressed properly.

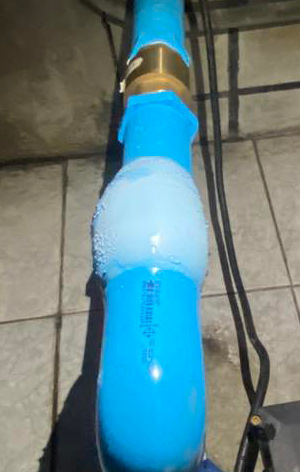

In many real-world cases, pipe deformation occurs near joints close to the pump—where pressure is at its highest.

Main Causes of PVC Pipe Bulging

Understanding the root causes is the first step to preventing damage.

1. Excessive Water Pressure (Overpressure)

When a water pump generates pressure beyond what the PVC pipe can handle—especially when using low-pressure-rated pipes—this can cause the pipe to expand and bulge over time.

For example:

• Thin PVC pipes (Class 5) are not designed for high-pressure pump systems

2. Water Hammer (Hydraulic Shock)

Water hammer is a sudden pressure surge caused by rapid changes in water flow, such as:

• Quickly closing a valve

• Sudden pump shutdown

This shock can create pressure spikes several times higher than normal, leading to localized pipe bulging or even bursting.

3. Incorrect PVC Pipe Selection

PVC pipes come in different pressure classes, such as:

• Class 5 (low pressure)

• Class 8.5

• Class 13.5 (high pressure)

Using the wrong pipe class for your pump system significantly increases the risk of failure.

4. High Ambient Temperature

PVC material becomes softer when exposed to heat. Pipes installed in enclosed or hot environments may lose strength, reducing their ability to withstand pressure.

5. Poor Installation Practices

Improper installation can concentrate stress in certain areas:

• Lack of pipe supports

• Misaligned or bent pipes

• Low-quality fittings

These issues can cause localized bulging, especially near joints.

Risks of PVC Pipe Bulging

Ignoring this issue can result in serious consequences:

• Sudden pipe bursts

• Water leakage and property damage

• Increased load on the water pump

• Higher maintenance and repair costs

How to Prevent PVC Pipe Bulging

✅ 1. Choose the Right Pipe Class

Use Class 8.5 or Class 13.5 PVC pipes for water pump systems to ensure adequate pressure resistance.

✅ 2. Install Pressure Control Devices

Adding protective equipment helps stabilize system pressure:

• Pressure Tank

• Pressure Switch

• Pressure Relief Valve

These components reduce pressure spikes and extend system lifespan.

✅ 3. Minimize Water Hammer Effects

• Avoid sudden valve opening/closing

• Use high-quality valves

• Install a check valve

✅ 4. Improve Pipe Installation

• Add proper pipe supports

• Ensure straight alignment

• Avoid bending and stress points

Conclusion

PVC pipe bulging is typically caused by a combination of factors—especially excessive pressure and improper system design.

By selecting the right materials and installing proper pressure control systems, you can:

• Protect your piping system

• Extend pump lifespan

• Reduce long-term costs
